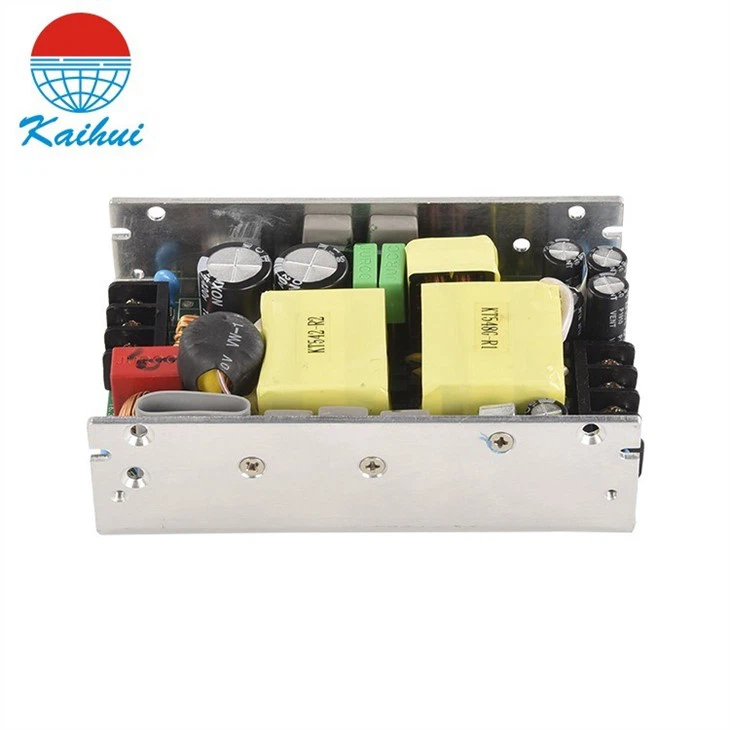

24V 400W power supply unit is commonly used for a water pump. These power supply units are designed to convert AC line voltage into a 24V DC power source suitable for powering a variety of pumps. The 400W rating provides sufficient power to work with most medium-sized pumps, while the 24V output ensures compatibility with almost any pump in the market.
|
Model No. Parameter |
K18-UP400S12 |
K18-UP400S24 |
K18-UP400S28 |
K18-UP400S36 |
K18-UP400S48 |
K18-UP400S60 |
|
|
Output
|
Output voltage |
+12V |
+24V |
+28V |
+36V |
+48V |
+60V |
|
Rated current |
33.4A |
16.7A |
14.3A |
11A |
8.3A |
6.7A |
|
|
Current range |
0-33.4A |
0-16.7A |
0-14.3A |
0-11A |
0-8.3A |
0-6.7A |
|
|
Rated power(cooling by nature) |
350W
|
||||||
|
Rated power(with cooling fan) |
400W
|
||||||
|
Ripple |
200mVp-p |
240mVp-p |
280mVp-p |
360mVp-p |
480mVp-p |
600mVp-p |
|
|
Adjustable output voltage range |
±5% |
||||||
|
Output accuracy |
±1% |
||||||
|
Line regulation |
±0.5% |
||||||
|
Load regulation |
±0.5% |
||||||
|
Set up,rise,hold on time |
500ms,50ms,5ms |
||||||
|
Input
|
Input voltage range |
90-264V AC |
|||||
|
Input current |
3A @ 220V AC |
||||||
|
Frequency |
47-63 Hz |
||||||
|
Efficiency |
90% |
92% |
93% |
93% |
93% |
93% |
|
|
Power factor |
>0.99@110V;>0.95@220V |
||||||
|
Inrush current |
Cold start 15A/115V，30A/230V |
||||||
|
Leakage |
<3.5mA@240V AC |
||||||
|
Protection
|
Over load protection |
110~200%,Hiccup protection, automatic recovery |
|||||
|
Output over-voltage protection |
15-18V |
28-33V |
32-36V |
42-46V |
55-60V |
70~80V |
|
|
Over temp. protection |
The cover temp.>105℃，shut up,automatic recovery |
||||||
|
Environment
|
Working temp.,humidity |
-20~60℃,10~90% RH，No condensation |
|||||
|
storage temp.,humidity |
-20~85℃，10~95% RH |
||||||
|
Temperature drift |
±0.03%/℃(0~50℃) |
||||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES |
||||||
|
Safety&EMC standards
|
Safety standards |
GB4943,EN60950-1:2006 |
|||||
|
Withstand voltage |
I/P-O/P:3KVAC； I/P-FG:1.5KVAC； O/P-FG:500VAC |
||||||
|
Insulation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
||||||
|
EMC standards |
EN55015 CLASS B; EN61000-3-2 |
||||||
|
Others |
Dimension |
127*82*39mm |
|||||
|
Weight |
0.6Kg |
||||||
Q:What is PFC for the PSU?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models of dc power supply, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
